SKU VF-HK4

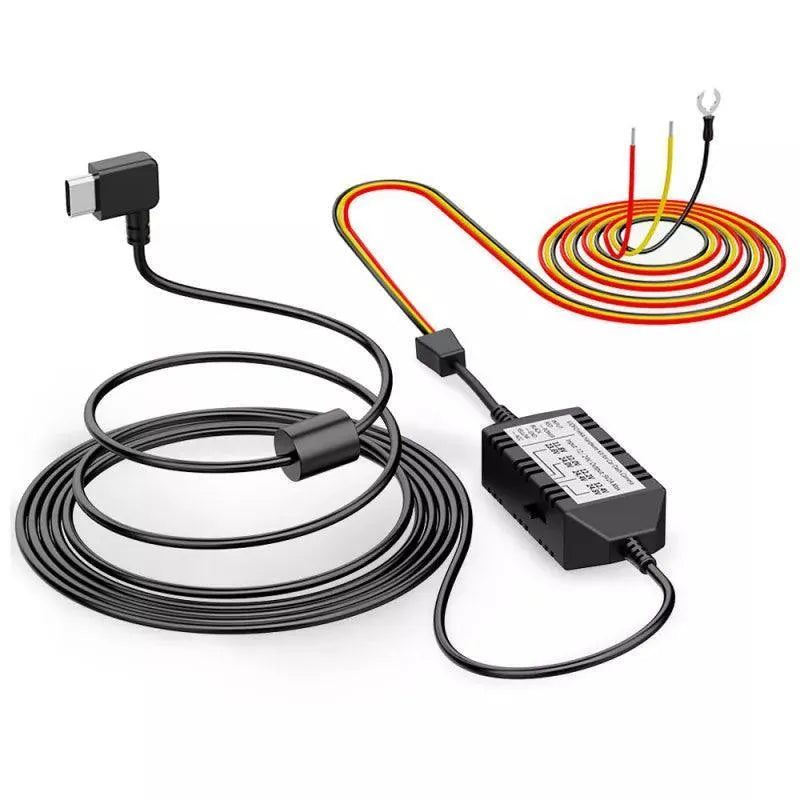

VIOFO Type-C HK4 Hardwire Kit

$17.99 - $17.99

$17.99

$17.99 - $17.99

$17.99

Best Price Guaranteed

Quantity

VIOFO USB-C Hardwire Kit

The VIOFO Type-C HK4 Hardwiring Kit is compatible with the following VIOFO models: T130, A139 Pro, A329, A229, A229 Plus, A229 Pro, WM1, and A119 Mini 2.

This hardwiring kit is not compatible with the following VIOFO dash cam models: A119 V3, A129 Duo, A129 Duo IR, A129 Pro Duo, A129 Plus Duo.

For the VIOFO VS1 Mini, this cable is compatible, however the fitment is not precise, and pieces of the metal plug will show.

NOTE: Fuse Taps are not included by default. If you would like them, select the "2 of each" option. The types of add a fuse that we provide, if selected, are: Low profile, Mini, Micro 2, and ATO. If you are not sure which fuse type you need, we recommend getting the "2 of Each" option.

Product Details

This Type-C HK4 Hardwiring Kit supports ACC detection, the dash cam will switch to parking mode automatically if the vehicle engine is shut off. The dash cam will switch into normal recording when the vehicle engine is on.

With adjustable voltage low voltage protection function, it will cut power to your dash camera when detect the vehicle battery voltage is below the set number. It has four voltage options 11.8V, 12V, 12,2V, 12.4V.

The Type-C HK4 hardwiring kit is 12/24V compatible.

How to Hardwire

Hardwiring involves wiring directly to the fusebox of your vehicle, connecting all 3 cables to the corresponding types.

Fuse Box Connections:

Black: Ground
Red: Battery, or constant power
Yellow: ACC, or switched power

Unsure how to hardwire? Check out our hardwiring guide.

FAQ

What is Parking Mode?

Parking mode is offered on most of the dash cams available at BlackboxMyCar. While it is important to protect your vehicle while driving, it is just as important to have your vehicle protected while it is parked. When the dash cam is in parking mode, footage will only be saved when there is an impact and/or motion. Parking mode can be enabled with a hardwiring kit or a battery pack.

For more information on parking mode, click here.

What is a Hardwire Kit?

A hardwiring kit enables parking mode. It allows your dash cam to remain powered on even when the vehicle's ignition is turned off. Installation is a breeze as you will only need to find an accessory fuse, constant fuse, and a grounding point.

What is a Battery Pack?

Most customers purchase the battery pack to avoid using the vehicle’s battery to power their dash cam. The battery pack is charged by either being hardwired into an accessory fuse or by being plugged into one of the vehicle's 12-volt cigarette sockets. We recommend the hardwiring the battery pack as it charges the battery pack quicker.

For more information on Battery Packs, click here.

How much footage will my memory card store?

On average, a 2-channel dash cam writes 16GB/hour and a 1-channel dash cam writes about 8GB/hour.

Click here to see all the memory cards we carry.

Do I need a Rear Camera?

Accidents or events don't always happen at the front of the vehicle! Having a rear camera provides coverage for any events or accidents that may happen at the rear of the vehicle.

For more information on rear view cameras, click here.

Do I need a IR Rear Camera?

An IR camera is designed to record the interior of the vehicle in low light conditions. This option is very popular among rideshare drivers.

For more information on why rideshare drivers need dash cams, click here.

What is a CPL filter?

A CPL filter attaches to the dash cam lens to eliminate lens flares, light reflections, and windshield glares.

For more information on CPL filters, click here.

Where do I find the Latest Firmware?

Find the latest firmware and all downloadable content here.
